NEW RELEASES

GapGun 6 with
T60 and T15 Sensors

Accurex introduces the next generation measuring system, the GapGun 6 with T-Series sensors.

Watch Video

Product Brochure

Download

Precision on the Production Line

  • 1
    Touch Screen Interface

    User-friendly, high resolution, color interface allows users to work through measurement programs, access results and configure settings with ease.

    User-friendly, high resolution, color interface allows users to work through measurement programs, access results and configure settings with ease.

  • 2
    Ergonomic Design

    The GapGun® is consistently regarded as the most intuitive and ergonomic device of its kind on the market. Measurements can be taken with the press of a trigger, and its lightweight, practical design makes accessing measurement locations easy.

    The GapGun® is consistently regarded as the most intuitive and ergonomic device of its kind on the market. Measurements can be taken with the press of a trigger, and its lightweight, practical design makes accessing measurement locations easy

  • 4
    Flexible Data Transfer and Management options

    To facilitate effortless data transfer, the GapGun® offers versatile connectivity options with WiFi 5 and Ethernet docking station. You can easily download measurement programs directly from your PC and execute them instantly. Equipped with an internal hard drive, the GapGun® can store large volume of measurements without sacrificing performance, and data can be uploaded and integrated seamlessly into your quality management systems.

    To facilitate effortless data transfer, the GapGun® offers versatile connectivity options with WiFi 5 and Ethernet docking station. You can easily download measurement programs directly from your PC and execute them instantly. Equipped with an internal hard drive, the GapGun® can store large volume of measurements without sacrificing performance, and data can be uploaded and integrated seamlessly into your quality management systems.

  • 5
    Powerful and Durable

    The GapGun® boasts impressive durability and longevity. It has glass fiber reinforced polymer body, ruggedized connector and easily swappable battery to ensure long term performance, even in the most demanding shopfloor environments.

    The GapGun® boasts impressive durability and longevity. It has glass fiber reinforced polymer body, ruggedized connector and easily swappable battery to ensure long term performance, even in the most demanding shopfloor environments.

  • 3
    Interchangeable Sensor Heads

    The GapGun® has been designed so that the sensor can be rotated for easy measurement, detached/reattached easily, and used with an extension cable, making it highly versatile as well as cost-effective.

    The GapGun® has been designed so that the sensor can be rotated for easy measurement, detached/reattached easily, and used with an extension cable, making it highly versatile as well as cost-effective.

GapGun 6

1. Touch Screen Interface

User-friendly, high resolution, color interface allows users to work through measurement programs, access results and configure settings with ease.

2. Ergonomic Design

The GapGun® is consistently regarded as the most intuitive and ergonomic device of its kind on the market. Measurements can be taken with the press of a trigger, and its lightweight, practical design makes accessing measurement locations easy.

3. Interchangeable Sensor Heads

The GapGun® has been designed so that the sensor can be rotated for easy measurement, detached/reattached easily, and used with an extension cable, making it highly versatile as well as cost-effective.

4. Flexible Data Transfer and Management options

To facilitate effortless data transfer, the GapGun® offers versatile connectivity options with WiFi 5 and Ethernet docking station. You can easily download measurement programs directly from your PC and execute them instantly. Equipped with an internal hard drive, the GapGun® can store large volume of measurements without sacrificing performance, and data can be uploaded and integrated seamlessly into your quality management systems.

5. Powerful and Durable

The GapGun® boasts impressive durability and longevity. It has glass fiber reinforced polymer body, ruggedized connector and easily swappable battery to ensure long term performance, even in the most demanding shopfloor environments.

Fast

Accurate

Repeatable

Non-contact

Traceable

GapGun 6 with
T60 & T15 Features

INSIGHT Software lets you define sequences of measurements including photos that users can follow with minimal training.

All your checkplans are stored in one location. They can be adapted by multiple people (permission controlled) and can be distributed as needed to the GapGun devices in your fleet.

Bright, high-resolution capacitive touchscreen that is like using a phone or tablet. Easily navigate through checkplans and features.

Export measurement results easily to CSV, SQL, XML, Excel, PDF and other
file formats. Interface with most leading SPC packages.

View cross sections of the measurement area and results analysis on-screen using standard red/green coloring conventions and warning sounds to indicate go/no go conditions.

Our unique “VChange” mechanism means you can switch between sensor heads easily and quickly.

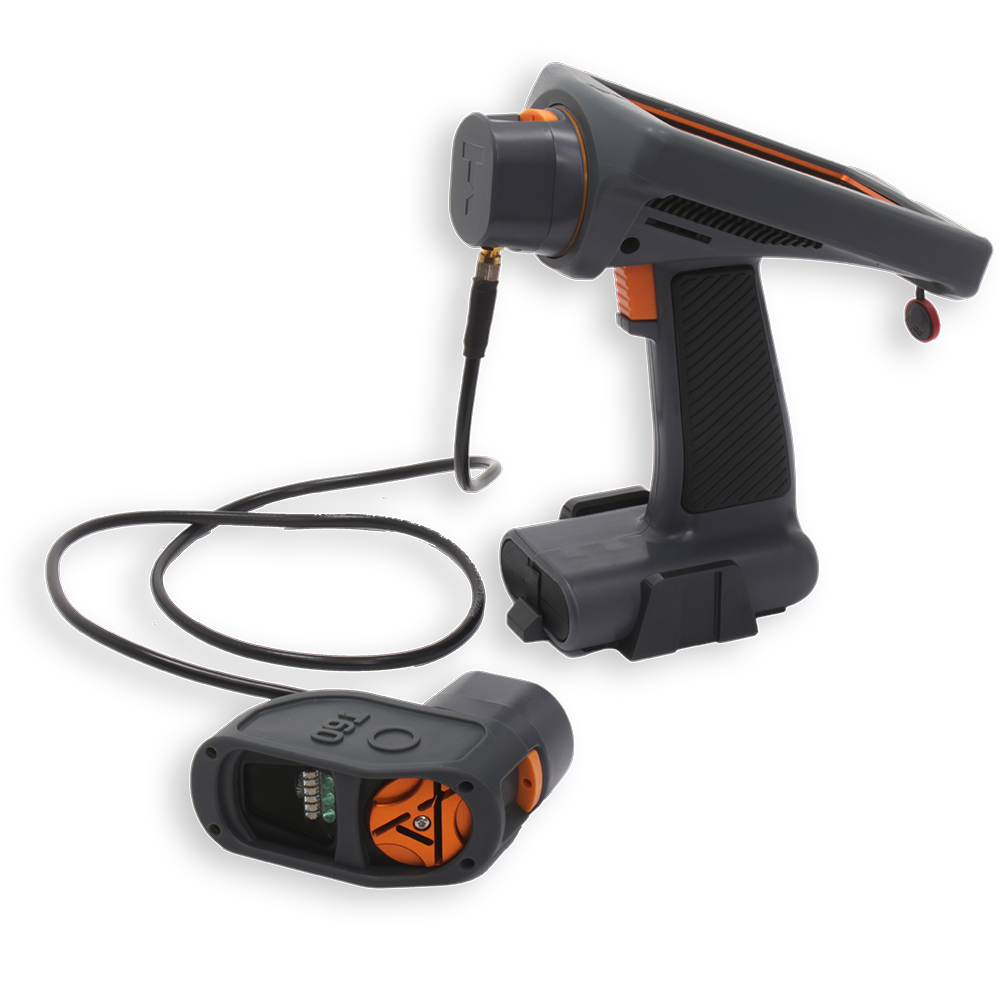

Take measurements in awkward and small places, when you use the sensor head extension cable.

All new extended range WIFI 5 enables continual connection to your production systems for real-time feedback.

Docking station provides convenient storage, charging and communication to PC all in one compact device.

Measure a range of surfaces including translucent plastic (e.g. headlights), chrome, high gloss black paint and carbon fibre.

T-Series Sensor head Specs

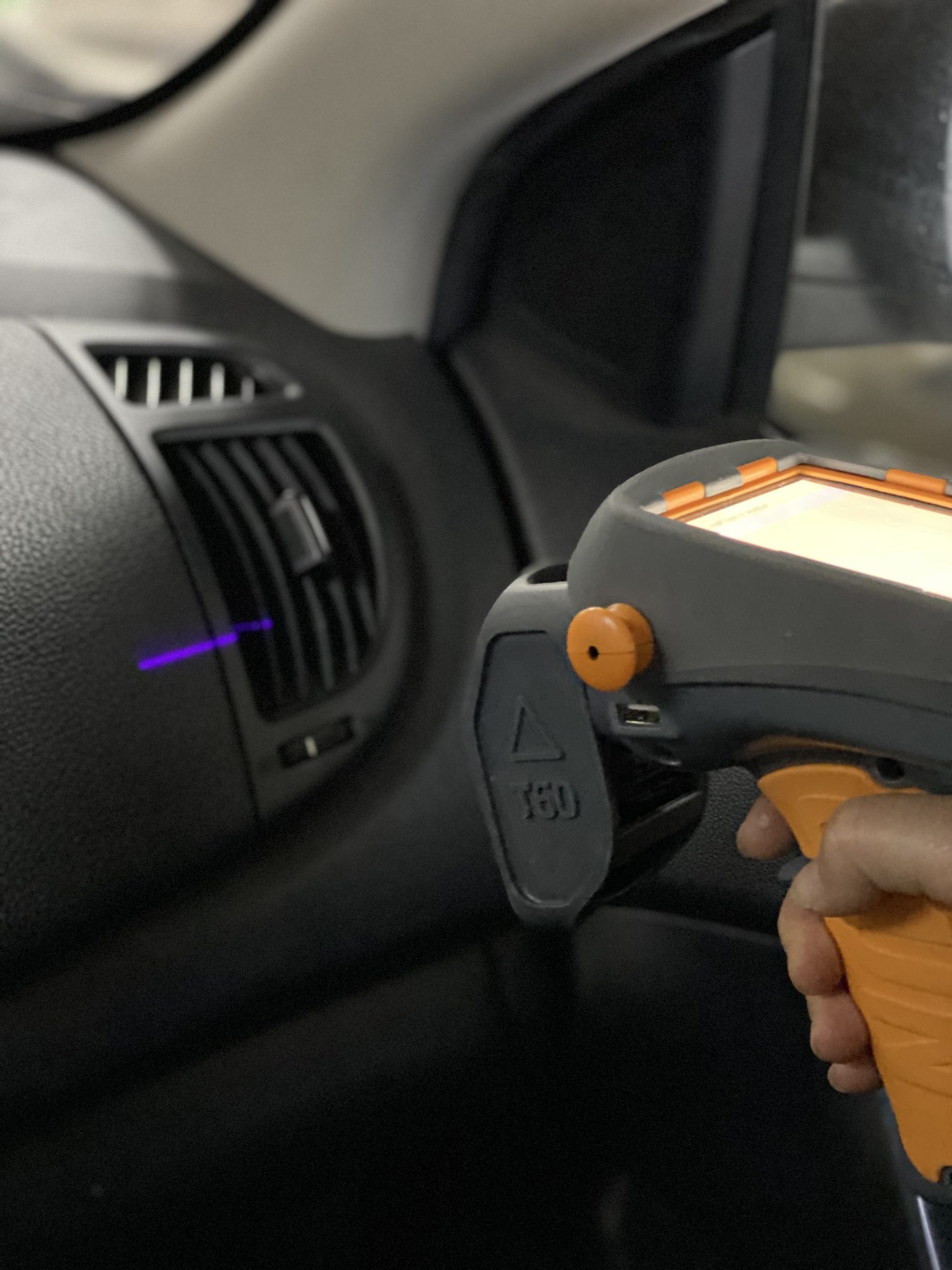

T60 sensor

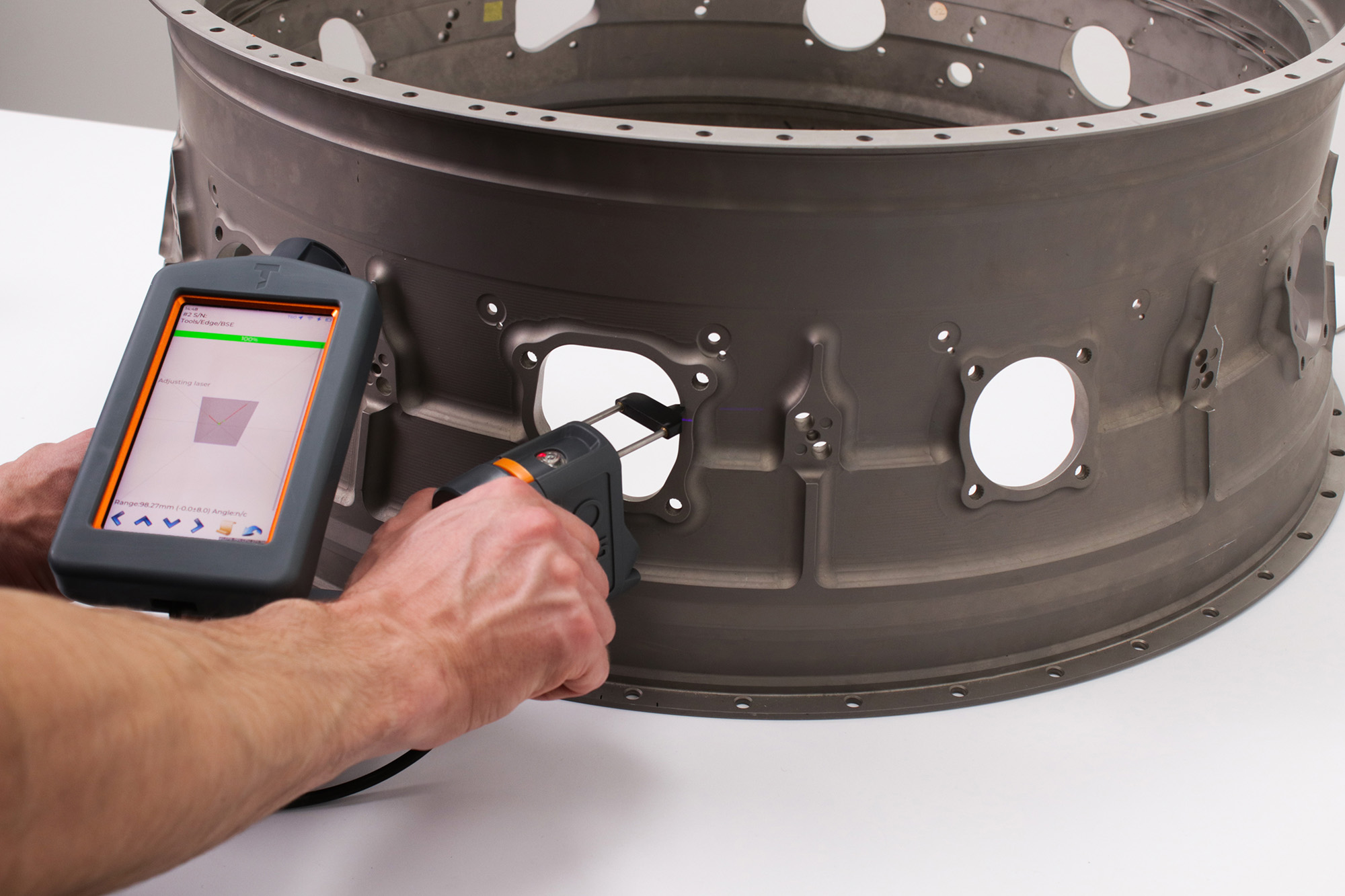

T15 sensor

T60

T15

Laser

Laser Class 2M with automatic laser intensity adjustment

Operating temperature

32 to 104°F (0 to 40°C)

Shock protection

Shock protection jacket on sensor, and high impact plastic housing

Software

GapGun version 8.1 software

Storage temperature

-4°F to 140°F (-20°C to 60°C)

Traceability and calibration

Calibrated under ISO 17025***

Calibrated Range Gap*

0.012in - 1.575in (0.3-40mm)

0.012in - 0.197in (0.3-5 mm)

Calibrated Range Radius*

0.394in - 1.181in (10-30 mm)

0.0394in - 0.197in (1-5mm)

Accuracy (Gap)*

0.002in (60 μm)

0.001in (30 μm)

Repeatability (Gap)*

0.001in (25 μm)

0.0006in (15 μm)

Field of View

2.36 in (60mm)

0.591 in (15mm)

Size

1.61"×2.2"×3.9" (41×56×99 mm) WxDxH, Inc jacket

1.417" × 2.36" × 3.27" (36×60×83 mm) WxDxH, Inc jacket

Weight

5.9oz (170g)

6.1oz (175g)

ISO 17025

GapGuns are manufactured and calibrated in an ISO17025 lab.

* According to D19-034-8.1 Third Dimension specification upon request
** Standard deviation
*** Gap and Flush

Looking for GapGun PRO2?

The GapGun6 is the Next Generation GapGun, but GapGun Pro2 remains a current generation product and is still supported by Accurex & Third Dimension.
