GUIDED ASSEMBLY
Step-by-Step Assembly Instructions—Projected Directly on the Part
LYNX uses augmented reality to guide operators in real time, eliminating guesswork and reducing assembly errors.
Solve Assembly Problems with The LYNX Augmented Reality System
Complex assemblies pose a high risk of error. Operators rely on memory or paper instructions. Mistakes lead to rework and delays.
The LYNX Augmented Reality Assembly system projects relevant information and minimizes the likelihood of assembly errors. LYNX enhances productivity and accuracy, revolutionizing the way assembly tasks are handled.
Guided Assembly with Augmented Reality

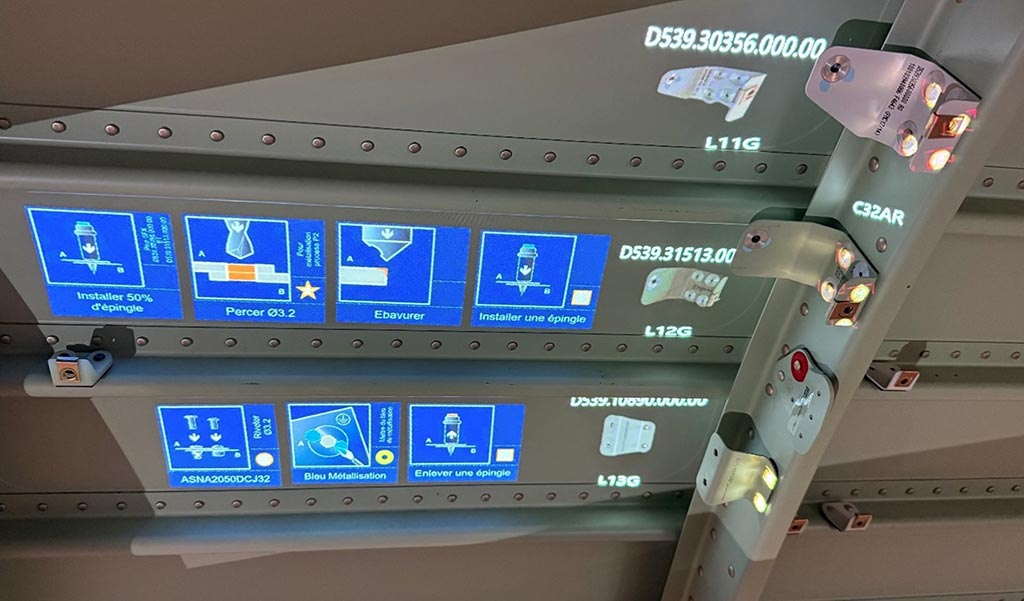

Digital work instructions are projected onto the workpiece, providing real-time guidance during assembly.
Visual overlays include:
- CAD drawings
- Text instructions
- Workflow steps
Instructions are projected onto the part so the operator can follow the guided steps while the system ensures correct execution.
Key Features
Key features of LYNX include:
- Full-color HD projection
- Photo + text overlays
- Large projection range (up to 8m)
- Distortion compensation
Eliminate Assembly Nonconformance
Detecting errors at the point of assembly allows for faster correction and prevents quality escapes.
The results lead to:
- Faster assembly time
- Reduced training requirements
- Improved operator confidence
- Consistent build quality
